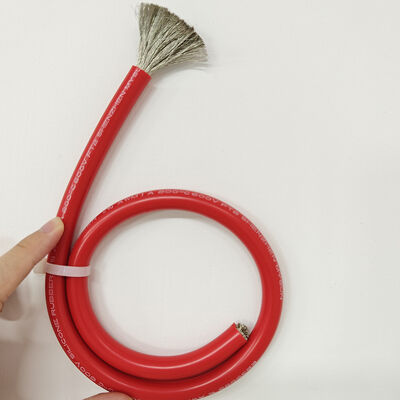

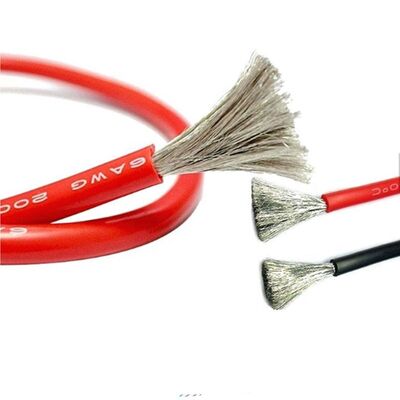

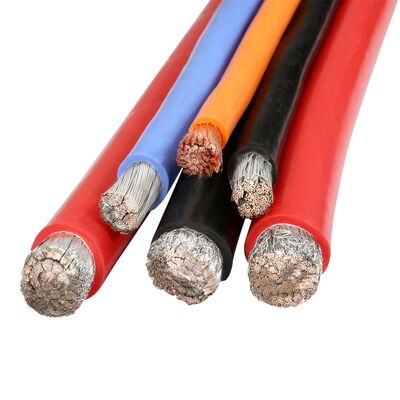

High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor

  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
  • High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor
Herkunftsort Guangdong, China
Markenname MYSUN
Modellnummer UL30045
Min Bestellmenge 2000
Produktdetails
Leitermaterial Kupfer Durchmesser 2 AWG, 4 AWG, 1 AWG, 6 AWG, 10 AWG, 8 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 2
Isoliermaterial Silikon Nennspannung 600 V, 1500 V, 1000 V
Leitertyp Gestrandet Temperatur 200 °C, 150 °C
Typ Isoliert Nenntemperatur 200c
Leiter Verzinnter Draht Isolierung Silikonkautschuk
Max Resistance 199,0 Ω/KM (0,15 mm²), 40,1 Ω/KM (0,50 mm²), 24,8 Ω/KM (0,75 mm²), 18,7 Ω/KM (1,00 mm²), 12,5 Ω/KM ( Länge der Einheit 610/2000 M (0,15 mm²), 305/1000 M (0,50 mm², 0,75 mm², 1,00 mm², 1,50 mm², 2,00 mm², 2,50 mm², 4,0 m
Nenndicke 0,60 mm (0,15 mm² bis 2,50 mm²), 1,00 mm (4,0 mm² bis 16,0 mm²), 1,90 mm (10,0 mm² bis 16,0 mm²), 2, Konstruktion 7/0,18 (0,15 mm²), 20/0,8 (0,50 mm²), 30/0,18 (0,75 mm²), 40/0,18 (1,00 mm²), 30/0,254 (1,50 mm²), 4
Hervorheben

200C Rated Temperature Silicone Wire

,

600V Rated Voltage Battery Cable

,

Tinned Copper Conductor High Temperature Cable
Hinterlass eine Nachricht
Produkt-Beschreibung
High Temperature Ultra Flexible Soft Silicone Wire
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 0 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 0
Technical Specifications - UL30045
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm) Max. Cond Resistance (Ω/KM) Unit Length (M)/(Ft)
0.157/0.180.540.601.74199.0610/2000
0.5020/0.80.920.602.1240.1305/1000
0.7530/0.181.130.602.3324.8305/1000
1.0040/0.181.310.602.5118.7305/1000
1.5030/0.2541.600.602.8012.5305/1000
2.0040/0.2541.870.603.078.96305/1000
2.5050/0.2542.081.004.087.47305/1000
4.0128/0.202.91.004.904.70
6.0192/0.203.31.005.303.15
10.0379/0.204.61.908.401.80
16.084/0.44.51.908.3014
16.0510/0.206.01.909.801.15
12128/0.45.51.909.305.53
25.0797/0.207.52.2011.900.80
0.50mm²200/0.47.02.2011.4040.1
35.01115/0.208.82.2013.200.60
1.00mm²279/0.48.02.2012.4020
50.01593/0.2010.32.4015.100.40
2.00mm²399/0.410.32.4015.108.78
70.02230/0.2012.02.4016.800.30
357/0.512.02.4016.80
95.03026/0.2014.02.4018.800.20
485/0.514.02.4018.80
120.02368/0.25416.02.4020.800.17
612/0.516.02.4020.80
150.0765/0.517.52.4022.300.14
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 2 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 2 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 4 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 4
Our Products
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 6
Company Profile
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 7 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 7 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 9 High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 9
Our Overseas Clients
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 11
Exhibition
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 12
Certifications
High Temperature Silicone Wire Battery Cable with 200C Rated Temperature 600V Rated Voltage and Tinned Copper Conductor 13
Frequently Asked Questions
1. Who Are We?
We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
2. What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
3. Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
4. What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
