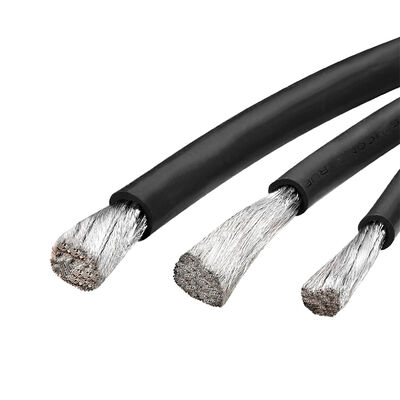

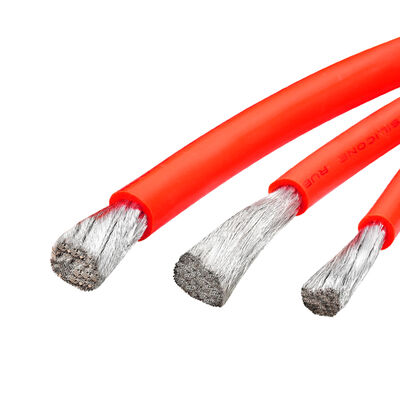

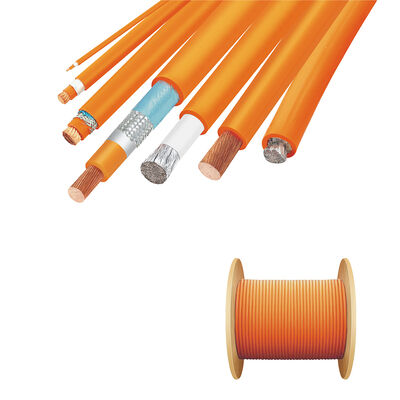

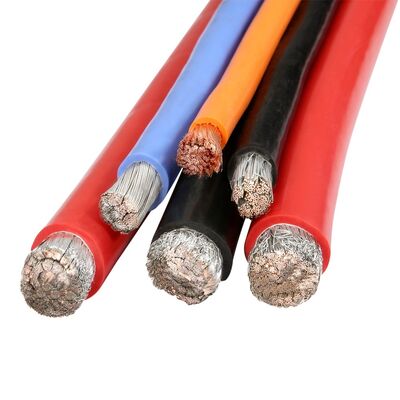

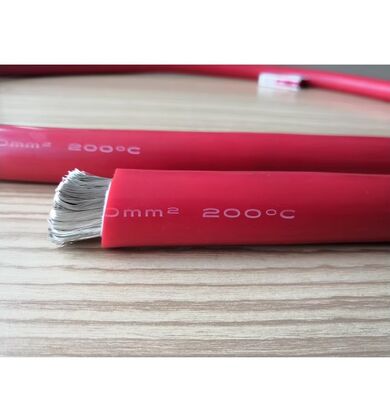

EV 125C 1500V XLPE Shield Wire with Tinned Copper Conductor for Solar Battery Systems (2.5MM2 to 240MM2)
Produktdetails
| Leitermaterial | Verzinntes Kupfer | Durchmesseroptionen | 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm², 150 mm², 240 mm², 300 mm², 400 mm², 2,5 mm², |
|---|---|---|---|
| Isoliermaterial | XLPE | Nennspannung | 1500V |
| Leitertyp | Gestrandet | Betriebstemperatur | 200℃ |
| Max Resistance | 6,00 Ω/KM (2,5 mm²), 4,70 Ω/KM (4 mm²), 3,00 Ω/KM (6 mm²), 1,80 Ω/KM (10 mm²), 1,15 Ω/KM (16 mm²), 0 | Leiterkonstruktion | 198/0,127 (2,5 mm²), 316/0,127 (4 mm²), 474/0,127 (6 mm²), 790/0,127 (10 mm²), 510/0,2 (16 mm²), 797 |
| Nenndicke der Isolierung | ≥0,50 mm (2,5 mm²), ≥0,60 mm (4 mm², 6 mm²), ≥0,65 mm (10 mm²), ≥0,70 mm (16 mm²), ≥0,80 mm (25 mm²) | Abschirmdichte | ≥80 % |
| Jacke Dicke | ≥0,60 mm (2,5 mm², 4 mm², 6 mm²), ≥0,70 mm (10 mm²), ≥0,70 mm (16 mm²), ≥0,90 mm (25 mm²), ≥0,90 mm | Gesamtdurchmesser | 3,60 mm (2,5 mm²), 4,50 mm (4 mm²), 5,20 mm (6 mm²), 6,40 mm (10 mm²), 8,00 mm (16 mm²), 10,00 mm (2 |
| Leiterdurchmesser | 2,1 mm (2,5 mm²), 2,9 mm (4 mm²), 3,3 mm (6 mm²), 4,6 mm (10 mm²), 6,0 mm (16 mm²), 7,5 mm (25 mm²), | Jacken-Durchmesser | 7,30 mm (2,5 mm²), 7,00 mm (4 mm²), 7,60 mm (6 mm²), 9,50 mm (10 mm²), 11,20 mm (16 mm²), 13,50 mm ( |
| Kabeltyp | XLPE-Abschirmdraht | ||
| Hervorheben | 1500V Rated Voltage XLPE Shield Wire,Tinned Copper Conductor Battery Cable,2.5MM2 to 240MM2 Solar Battery System Wire |
||
Produkt-Beschreibung
EV 125C 1500V 2.5MM² - 240MM² XLPE Shield Wire for Solar Battery System
Premium XLPE Shield Cable Supplier
Supplies Fortune 500 companies - Top XLPE Shield Cable Supplier in China
Technical Specifications
| Conductor Size (mm²) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Tinned Copper Mesh Weave Density | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) |
|---|---|---|---|---|---|---|---|---|
| 2.5 | 198/0.127 | 2.1 | ≥0.50 | 3.60 | ≥80% | ≥0.60 | 6.00 | 7.30 |
| 4 | 316/0.127 | 2.9 | ≥0.60 | 4.50 | ≥80% | ≥0.60 | 7.00 | 4.70 |
| 6 | 474/0.127 | 3.3 | ≥0.60 | 5.20 | ≥80% | ≥0.60 | 7.60 | 3.00 |
| 10.0 | 790/0.127 | 4.6 | ≥0.65 | 6.40 | ≥80% | ≥0.70 | 9.50 | 1.80 |
| 16.0 | 510/0.2 | 6.0 | ≥0.70 | 8.00 | ≥80% | ≥0.70 | 11.20 | 1.15 |
| 25.0 | 797/0.2 | 7.5 | ≥0.80 | 10.00 | ≥80% | ≥0.90 | 13.50 | 0.80 |
| 35.0 | 1115/0.2 | 8.8 | ≥0.90 | 11.50 | ≥80% | ≥0.90 | 15.00 | 0.60 |
| 50.0 | 1593/0.2 | 10.3 | ≥0.90 | 13.00 | ≥80% | ≥1.00 | 17.20 | 0.40 |
| 70.0 | 2230/0.2 | 12.0 | ≥1.00 | 15.00 | ≥80% | ≥1.00 | 19.20 | 0.30 |
| 95.0 | 3026/0.2 | 14.0 | ≥1.00 | 17.00 | ≥80% | ≥1.00 | 21.2 | 0.20 |
| 120.0 | 3823/0.2 | 16.0 | ≥1.30 | 20.00 | ≥80% | ≥1.30 | 25.2 | 0.17 |
| 150.0 | 4778/0.2 | 18.0 | ≥1.30 | 22.00 | ≥80% | ≥1.30 | 27.2 | 0.14 |
| 185.0 | 5893/0.2 | 19.0 | ≥1.30 | 24.00 | ≥80% | ≥1.30 | 28.2 | 0.11 |
| 240.0 | 7644/0.2 | 24.0 | ≥1.30 | 28.00 | ≥80% | ≥1.30 | 33.2 | 0.09 |
