200C Rated Temperature 600V Rated Voltage Tinned Copper Conductor Battery Cable Silicone Rubber Wire
Produktdetails
| Leitermaterial | Kupfer | Durchmesser | 75 mm2, 120 mm2, 150 mm2, 200 mm2, 240 mm2 |
|---|---|---|---|
| Isoliermaterial | Silikonkautschuk | Nennspannung | 600 V, 1500 V, 1000 V |
| Leitertyp | Gestrandet | Temperaturbewertung | 200 °C, 150 °C |
| Isolierungstyp | Isoliert | Leiterzusammensetzung | Verzinnter Draht |
| Maximalleiter Widerstand | 199,0 Ω/KM (0,15 mm2), 40,1 Ω/KM (0,50 mm2), 24,8 Ω/KM (0,75 mm2) | Länge der Einheit | 610M/2000Ft (0,15mm2), 305M/1000Ft (0,50mm2-2,50mm2) |
| Leiterkonstruktion | 7/0,18 (0,15 mm2), 20/0,8 (0,50 mm2), 30/0,18 (0,75 mm2) | Isolationsstärke | 0,60 mm (0,15 mm2-2,00 mm2), 1,00 mm (2,50 mm2) |
| Gesamtdurchmesser | 1,74 mm (0,15 mm2), 2,12 mm (0,50 mm2), 2,33 mm (0,75 mm2) | Farboptionen | Alle Farben |
| Leitergrößenbereich | 0,15 mm2 bis 150 mm2 | ||
| Hervorheben | 200C Rated Temperature Battery Cable,600V Rated Voltage Silicone Rubber Wire,Tinned Copper Conductor High-Temperature Wire |
||
Produkt-Beschreibung

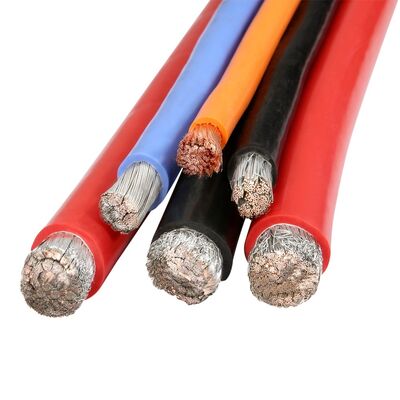

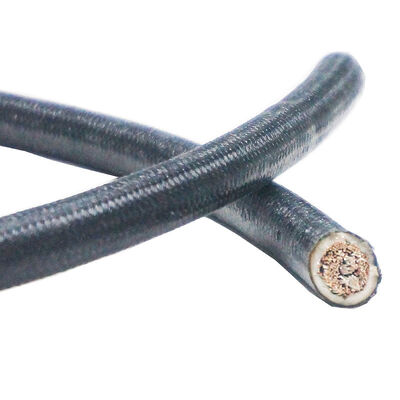

High-Capacity Battery Cables: 75mm² to 400mm²
Premium silicone rubber insulated battery cables designed for high-performance applications in industrial and manufacturing sectors.
Supplies Fortune 500, Top Silicone Rubber Wire Supplier In China
Product Specifications
UL30045 Technical Data
| Conductor Size (AWG/mm²) | Construction (No./mm) | Diameter (mm) | Nominal Thickness (mm) | Diameter (mm) | Max. Cond Resistance (Ω/KM) | Unit Length (M)/(Ft) |
|---|---|---|---|---|---|---|
| 0.15 | 7/0.18 | 0.54 | 0.60 | 1.74 | 199.0 | 610/2000 |
| 0.50 | 20/0.8 | 0.92 | 0.60 | 2.12 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.13 | 0.60 | 2.33 | 24.8 | 305/1000 |
| 1.00 | 40/0.18 | 1.31 | 0.60 | 2.51 | 18.7 | 305/1000 |
| 1.50 | 30/0.254 | 1.60 | 0.60 | 2.80 | 12.5 | 305/1000 |
| 2.00 | 40/0.254 | 1.87 | 0.60 | 3.07 | 8.96 | 305/1000 |
| 2.50 | 50/0.254 | 2.08 | 1.00 | 4.08 | 7.47 | 305/1000 |
| 4.0 | 128/0.20 | 2.9 | 1.00 | 4.90 | 4.70 | |
| 6.0 | 192/0.20 | 3.3 | 1.00 | 5.30 | 3.15 | |
| 10.0 | 379/0.20 | 4.6 | 1.90 | 8.40 | 1.80 | |
| 16.0 | 84/0.4 | 4.5 | 1.90 | 8.30 | 14 | |
| 16.0 | 510/0.20 | 6.0 | 1.90 | 9.80 | 1.15 | |
| 12 | 128/0.4 | 5.5 | 1.90 | 9.30 | 5.53 | |
| 25.0 | 797/0.20 | 7.5 | 2.20 | 11.90 | 0.80 | |
| 0.50mm² | 200/0.4 | 7.0 | 2.20 | 11.40 | 40.1 | |
| 35.0 | 1115/0.20 | 8.8 | 2.20 | 13.20 | 0.60 | |
| 1.00mm² | 279/0.4 | 8.0 | 2.20 | 12.40 | 20 | |
| 50.0 | 1593/0.20 | 10.3 | 2.40 | 15.10 | 0.40 | |
| 2.00mm² | 399/0.4 | 10.3 | 2.40 | 15.10 | 8.78 | |
| 70.0 | 2230/0.20 | 12.0 | 2.40 | 16.80 | 0.30 | |
| 357/0.5 | 12.0 | 2.40 | 16.80 | |||
| 95.0 | 3026/0.20 | 14.0 | 2.40 | 18.80 | 0.20 | |
| 485/0.5 | 14.0 | 2.40 | 18.80 | |||
| 120.0 | 2368/0.254 | 16.0 | 2.40 | 20.80 | 0.17 | |
| 612/0.5 | 16.0 | 2.40 | 20.80 | |||
| 150.0 | 765/0.5 | 17.5 | 2.40 | 22.30 | 0.14 |

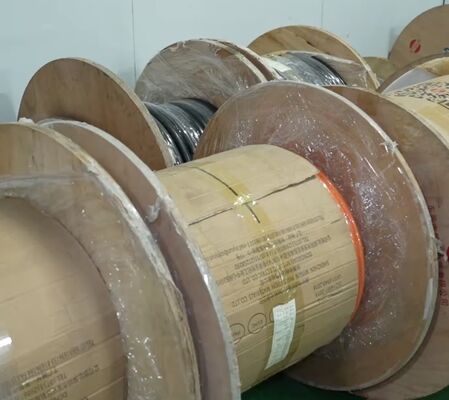

Customizable Packaging Available
Company Profile
Our Overseas Clients
Exhibition
Certifications
Frequently Asked Questions
Who Are We?

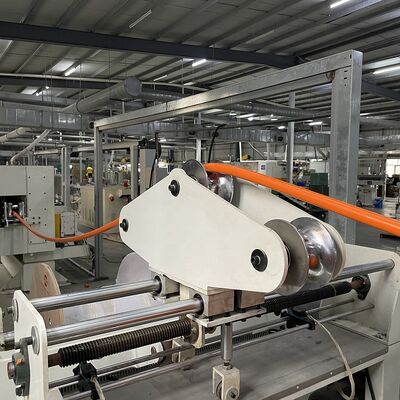

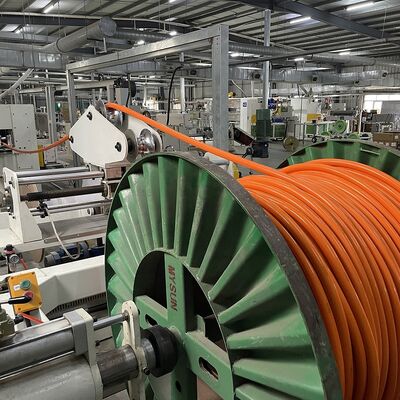

We are a professional manufacturer of high-temperature wires and cables with 26 years of electric wire experience. Our headquarter is located in Shenzhen, Guangdong, China, and our two production bases are located in Dongguan, Guangdong, China and Jingzhou, Hubei, China.
What Can We Provide?
We can provide high-temperature wires and cables, silicone tubing - including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, wiring harnesses.
Why Choose Us?
A. Free Sample. B. Competitive Price. C. High Quality Standard. D. Customized Service.
What Certifications Do We Have?
We have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU. Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
