High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment

  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
  • High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment
Herkunftsort Guangdong, China
Markenname MYSUN
Modellnummer CQC1111.31-2020/GB/T38296-2019
Min Bestellmenge 3050

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Leitermaterial Kupfer aus Dose Durchmesser 0,051 mm2 bis 16,00 mm2
Isolationsmaterial FEP Nennspannung 300 V
Leitertyp Solide Form Runden
Temperaturbewertung 150 ° C. Typ Isoliert
Länge der Einheit 305/1000 m/ft Maximalleiter Widerstand 381 Ω/KM bis 1,17 Ω/KM
Nenndicke 0,230 mm bis 0,510 mm Isolationsdurchmesser 0,80 mm bis 6,65 mm
Konstruktion 7/0,10 bis 133/0,393 Stromspannung 300 V
Farbe Alle Farben
Hervorheben

High Temperature FEP Wire

,

Tinned Nickel Plated Copper FEP Wire

,

CQC1111.31-2020/GB/T38296-2019 Standard FEP Wire
Hinterlass eine Nachricht
Produkt-Beschreibung
FEP Wire 300V 150°C Tinned Nickel Plated Copper High Temperature E-200/TX/FEP Wire for UAV Motor Generator

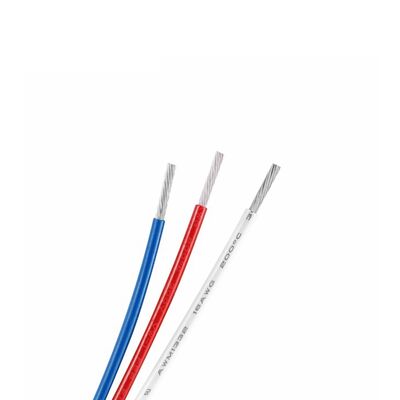

High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 0 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 1
Specification
CQC E-150/TX/FEP Wire UL1330 Max.Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
0.051 7/0.10 0.30 0.230 0.80 381 610/2000
0.08 7/0.127 0.38 0.230 0.85 239 610/2000
0.13 7/0.16 0.48 0.230 0.95 150 305/1000
0.21 19/0.12 0.60 0.230 1.10 94.2 305/1000
0.32 19/0.15 0.78 0.230 1.20 59.4 305/1000
0.40 19/0.17 0.85 0.230 1.35 46.6 305/1000
0.52 19/0.19 0.96 0.230 1.50 37.4 305/1000
0.75 19/0.225 1.12 0.230 1.60 24.8 305/1000
0.82 19/0.235 1.17 0.380 1.95 23.5 305/1000
1.00 19/0.26 1.35 0.380 2.15 18.7 305/1000
1.31 19/0.30 1.52 0.380 2.30 14.7 305/1000
1.50 19/0.32 1.60 0.380 2.40 12.5 305/1000
2.08 19/0.375 1.89 0.380 2.70 9.22 100/328
2.50 19/0.41 2.08 0.380 2.90 7.47 100/328
3.31 19/0.475 2.39 0.380 3.20 5.75 100/328
4.00 19/0.52 2.70 0.380 3.50 4.68 100/328
5.26 19/0.60 3.00 0.380 3.80 3.62 100/328
6.00 19/0.64 3.25 0.380 4.00 3.12 100/328
8.37 68/0.40 3.90 0.510 4.95 2.23 100/328
10.00 37/0.59 4.30 0.510 5.35 1.87 100/328
13.30 133/0.36 5.20 0.510 6.25 1.41 100/328
16.00 133/0.393 5.60 0.510 6.65 1.17 100/328
Click Contact us Get the Best Quote
Company Profile
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 2 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 3 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 4 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 5
Our Products
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 6 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 7
Application
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 8 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 9
Our Overseas Clients
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 10 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 11
Exhibition
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 12 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 13
Certifications
High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 14 High Temperature FEP Wire with Tinned Nickel Plated Copper Conductor for UAV Motor Generator and Medical Equipment 15
FAQ
1. Who Are We?
We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China.
2. What Can We Provide?
We Can Provide High-temperature Wires And Cables, Silicone Tubing - Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses.
3. Why Choose Us?
A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service.
4. What Certifications Do We Have?
We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
