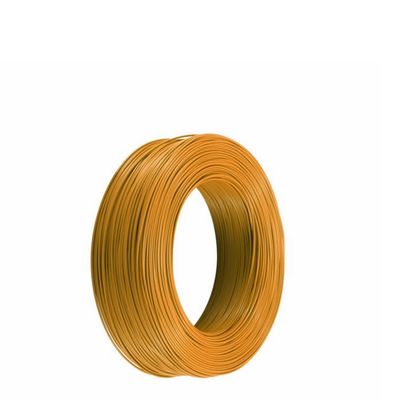

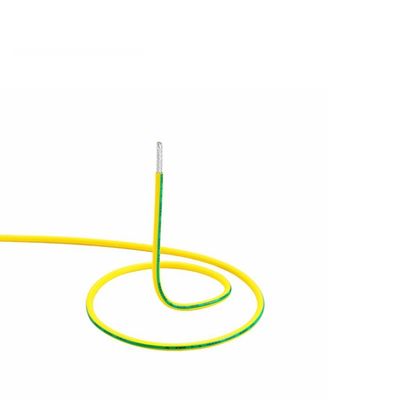

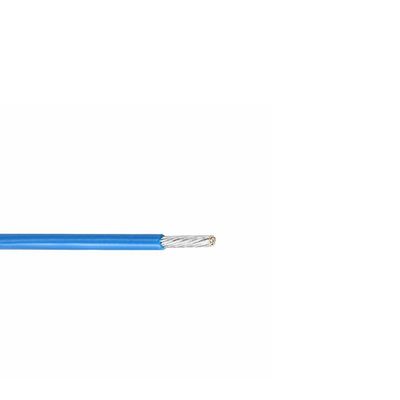

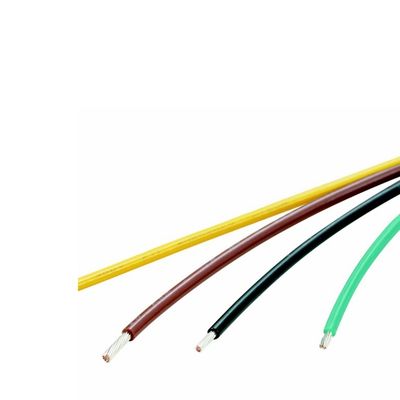

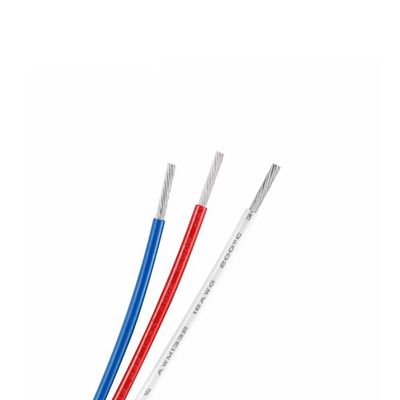

UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable

  • UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable
  • UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable
  • UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable
  • UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable
  • UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable
  • UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable
Herkunftsort Guangdong, China
Markenname MYSUN
Modellnummer UL1858
Min Bestellmenge 3050

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Leitermaterial Kupfer aus Dose Durchmesser 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26AWG
Isolationsmaterial Gummi Nennspannung 30V
Leitertyp Solide Form Runden
Temperatur 105°C Typ Isoliert
Farbe Alle Farben Länge der Einheit 305/1000
Maximalleiter Widerstand 14,6 Ω/KM (16 AWG) Nenndicke 0,300 mm (16 AWG)
Isolationsdurchmesser 2,09 mm (16 AWG) Konstruktion 19/0,30 (16 AWG)
Leiterdurchmesser 1,49 mm (16 AWG)
Hervorheben

Multiple AWG Sizes FEP Wire

,

30V Rated Voltage UL10064 Wire

,

105°C Temperature Rating Tefzel Insulated Wire
Hinterlass eine Nachricht
Produkt-Beschreibung
UL10064 FEP Wire for Further Processing As Insulated Singles in Internal or External Interconnection Cable
Supplies Fortune 500 Companies Top High Temperature Wire Supplier In China.
UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 0 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 0
Specification
UL10064 UL1330
Conductor Insulation Max.Cond Resistance (Ω/KM) Unit length (M)(Ft)
Size (AWG) Construction (No.mm) Diameter (mm) Nominal thickness (mm) Diameter (mm)
32 7/0.08 0.24 0.200 0.64 563 610/2000
30 7/0.10 0.30 0.200 0.70 381 610/2000
28 7/0.127 0.38 0.250 0.88 239 610/2000
26 7/0.16 0.48 0.300 1.08 150 610/2000
24 7/0.20 0.61 0.300 1.21 94.2 610/2000
22 19/0.15 0.77 0.300 1.37 59.4 305/1000
20 19/0.19 0.92 0.300 1.52 36.7 305/1000
18 19/0.235 1.19 0.300 1.79 23.2 305/1000
16 19/0.30 1.49 0.300 2.09 14.6 305/1000
14 19/0.37 1.87 0.350 2.57 8.78 305/1000
Click Contact us Get the Best Quote
Company Profile
UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 2 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 2 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 4 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 4
Our Products
UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 6 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 6
Application
UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 8 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 8
Our Overseas Clients
UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 10 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 10
Exhibition
UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 12 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 12
Certifications
UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 14 UL10064 FEP Wire with Multiple AWG Sizes 30V Rated Voltage and 105°C Temperature Rating for Internal or External Interconnection Cable 14
FAQ
1. Who Are We?
We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China.
2. What Can We Provide?
We Can Provide High-temperature Wires And Cables, Silicone Tubing - Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses.
3. Why Choose Us?
A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service.
4. What Certifications Do We Have?
We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
