UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications

  • UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
  • UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
  • UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
  • UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
  • UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
  • UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications
Herkunftsort Guangdong, China
Markenname MYSUN
Zertifizierung ROHS/CCC/VDE/CCC/UL
Modellnummer UL3068
Min Bestellmenge 3050
Preis $0.08-0.16

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Leitermaterial Kupfer Durchmesser 16AWG, 18AWG, 20AWG, 22AWG, 24AWG, 26AWG, 28AWG, 30AWG
Isolationsmaterial Gummi Nennspannung 300 V
Leitertyp Gestrandet Temperaturbewertung 150 °C
Isolierungstyp Silikonkautschuk Leiter Kupfer aus Dose
Maximalleiter Widerstand 14,6-381 Ω/KM Länge der Einheit 305-610 Meter
Nenndicke 0,60 Millimeter Isolationsdurchmesser 1,50-2,69 mm
Leiterdurchmesser 0,30-1,49 mm Konstruktion 7/0,10-7/0,49 mm
Paket 305 Meter/Rolle
Hervorheben

305m/roll Silicone Fiberglass Braided Wire

,

Coffee Machine Fiberglass Braided Wire

,

300V Rated Voltage High Temperature Wire
Hinterlass eine Nachricht
Produkt-Beschreibung

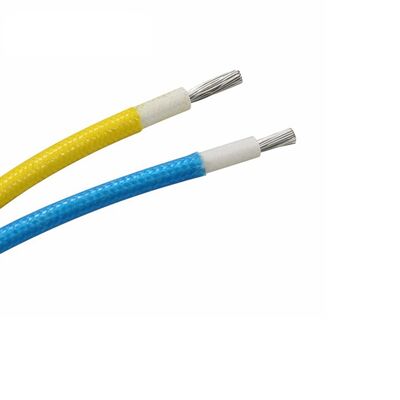

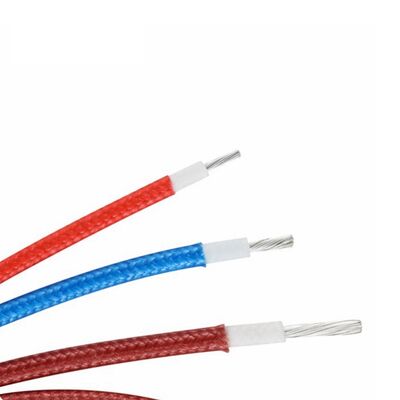

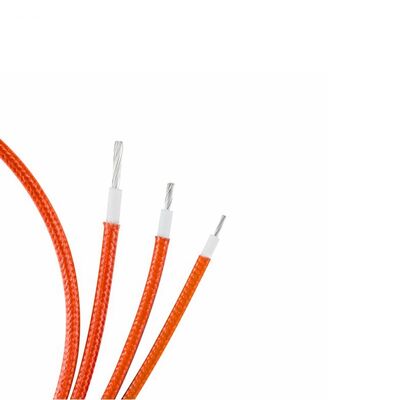

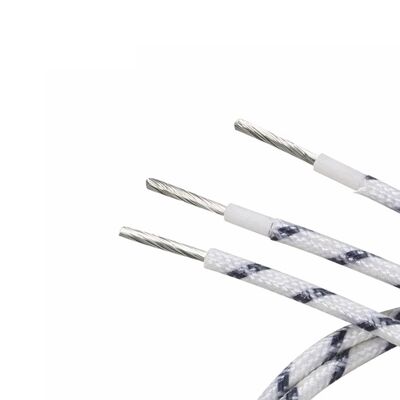

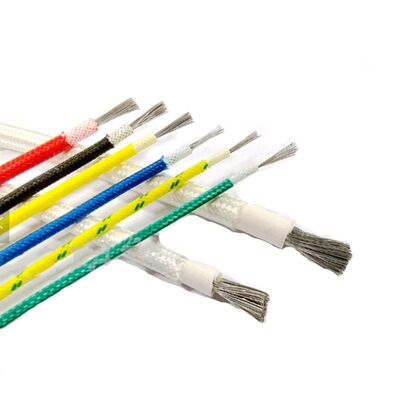

UL3068 300V 150°C High Temperature Silicone Fiberglass Braided Wire
Premium silicone fiberglass braided wire suitable for coffee machines and other high-temperature applications. Available in multiple AWG sizes from 16AWG to 26AWG.
Product Images
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 0 UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 1 UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 2
Technical Specifications
Conductor Size (AWG) Construction (No./mm) Diameter (mm) Insulation Thickness (mm) Diameter (mm) Max. Conductor Resistance (Ω/KM) Unit Length (M/Ft)
30 7/0.10 0.30 0.60 1.50 381 610/2000
28 7/0.127 0.38 0.60 1.58 239 610/2000
26 7/0.16 0.48 0.60 1.68 150 610/2000
24 7/0.20 0.61 0.60 1.81 94.2 610/2000
22 7/0.254 0.77 0.60 1.97 59.4 305/1000
20 7/0.31 0.94 0.60 2.14 36.7 305/1000
18 7/0.39 1.19 0.60 2.39 23.2 305/1000
16 7/0.49 1.49 0.60 2.69 14.6 305/1000
Contact us for a competitive quote
Company Profile
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 3 UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 4
Our Product Range
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 5
Applications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 6
Our Global Clients
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 7
Trade Exhibitions
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 8
Certifications
UL3068 Certified 300V Rated Voltage 305m/roll Silicone Fiberglass Braided Wire for Coffee Machine Applications 9
Frequently Asked Questions
  • Who are we? We are a professional manufacturer of high-temperature wires and cables with 26 years of experience. Our headquarters are in Shenzhen, China with production bases in Dongguan and Jingzhou.
  • What can we provide? High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cable, and wiring harnesses.
  • Why choose us? Free samples, competitive pricing, high quality standards, and customized services.
  • What certifications do we have? UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC certification.
  • What services can we provide? Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
