UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters

  • UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
  • UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
  • UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
  • UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
  • UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
  • UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters
Herkunftsort Guangdong, China
Markenname MYSUN
Zertifizierung ROHS/CCC/VDE/CCC/UL
Modellnummer ul3071
Min Bestellmenge 3050
Preis $0.12-0.33

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Nennspannung 600V Nenntemperatur 200 Grad
Leitermaterial Kupfer Leitertyp Gestrandet
Isolationsmaterial Silikonkautschuk Drahtmesser 13AWG, 14AWG, 16AWG, 18AWG
Leiterdurchmesser 1,19 mm (18 AWG), 1,49 mm (16 AWG), 1,87 mm (14 AWG), 2,07 mm (13 AWG) Isolationsdicke 0.93mm
Gesamtdurchmesser 3,05 mm (18 AWG), 3,35 mm (16 AWG), 3,73 mm (14 AWG), 3,93 mm (13 AWG) Maximalleiter Widerstand 23,2 Ω/KM (18AWG), 14,6 Ω/KM (16AWG), 8,96 Ω/KM (14AWG), 6,97 Ω/KM (13AWG)
Länge der Einheit 305M/Roll Leiterkonstruktion 7/0,39 (18AWG), 7/0,49 (16AWG), 41/0,254 (14AWG), 50/0,254 (13AWG)
Verzinnter Leiter Ja Anpassung der Farben Verfügbar
Paketlänge 305 Meter/Rolle
Hervorheben

UL3071 Certified Fiberglass Braided Wire

,

600V Rated Voltage Silicone Fiberglass Braided Wire

,

200 Degree Rated Temperature High Temperature Wire
Hinterlass eine Nachricht
Produkt-Beschreibung

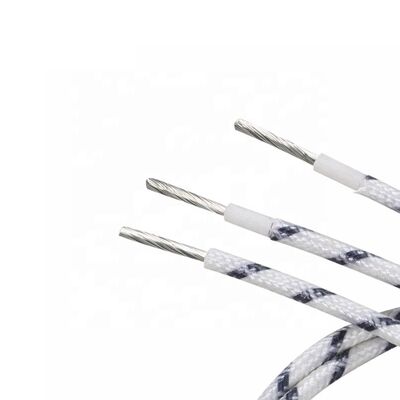

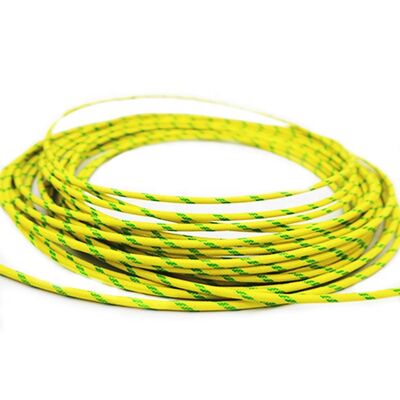

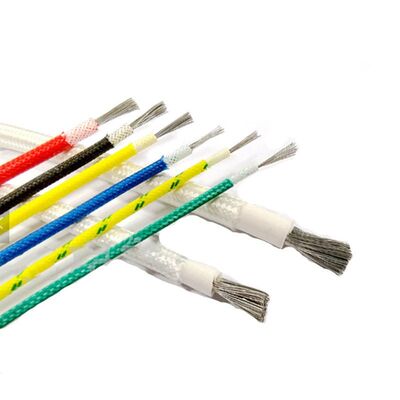

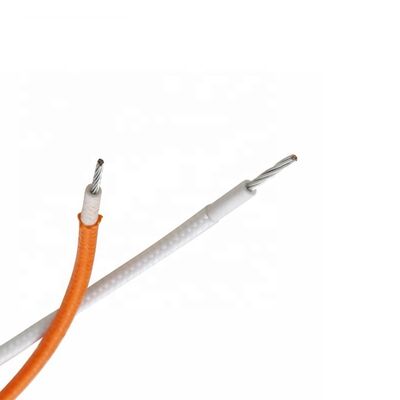

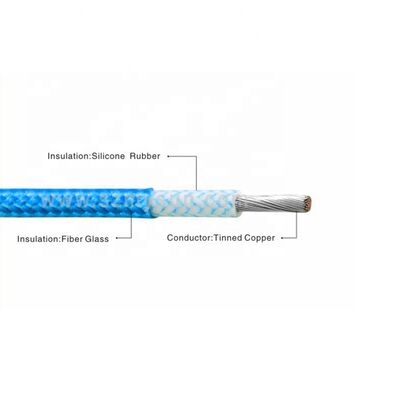

UL3071 600V 200°C High Temperature Wire (13AWG-18AWG) - Silicone Braided Fiber Glass Wire for Convection Heaters
Product Overview
We are seeking country agents for mutually beneficial partnerships in distributing our high-quality high-temperature wires.
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 0 UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 1
Technical Specifications
Conductor Insulation Max. Conductor Resistance (Ω/KM) Unit Length (M/Ft)
Size (AWG) Construction (No./mm) Diameter (mm) Nominal Thickness (mm) Diameter (mm)
18 7/0.39 1.19 0.93 3.05 23.2 305/1000
16 7/0.49 1.49 0.93 3.35 14.6 305/1000
14 41/0.254 1.87 0.93 3.73 8.96 305/1000
13 50/0.254 2.07 0.93 3.93 6.97 305/1000
Click here to contact us for a competitive quote
Company Profile
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 2 UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 3
Our Product Range
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 4
Applications
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 5
Our Global Clients
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 6
Trade Exhibitions
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 7
Certifications
UL3071 Certified 600V 200C High Temperature Silicone Fiberglass Braided Wire for Convection Heaters 8
Frequently Asked Questions
  • Who are we? We are a professional manufacturer of high-temperature wires and cables with 26 years of experience. Our headquarters is in Shenzhen, China with production bases in Dongguan and Jingzhou.
  • What we provide: High-temperature wires and cables, silicone tubing including silicone rubber wire, XLPE, FEP/PFA/ETFE/PTFE wire, new energy cables, and wiring harnesses.
  • Why choose us? Free samples, competitive pricing, high quality standards, and customized services.
  • Certifications: UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC.
  • Services: Multiple delivery terms (FOB, CIF, EXW, etc.) and payment options (T/T, L/C, PayPal, etc.).
